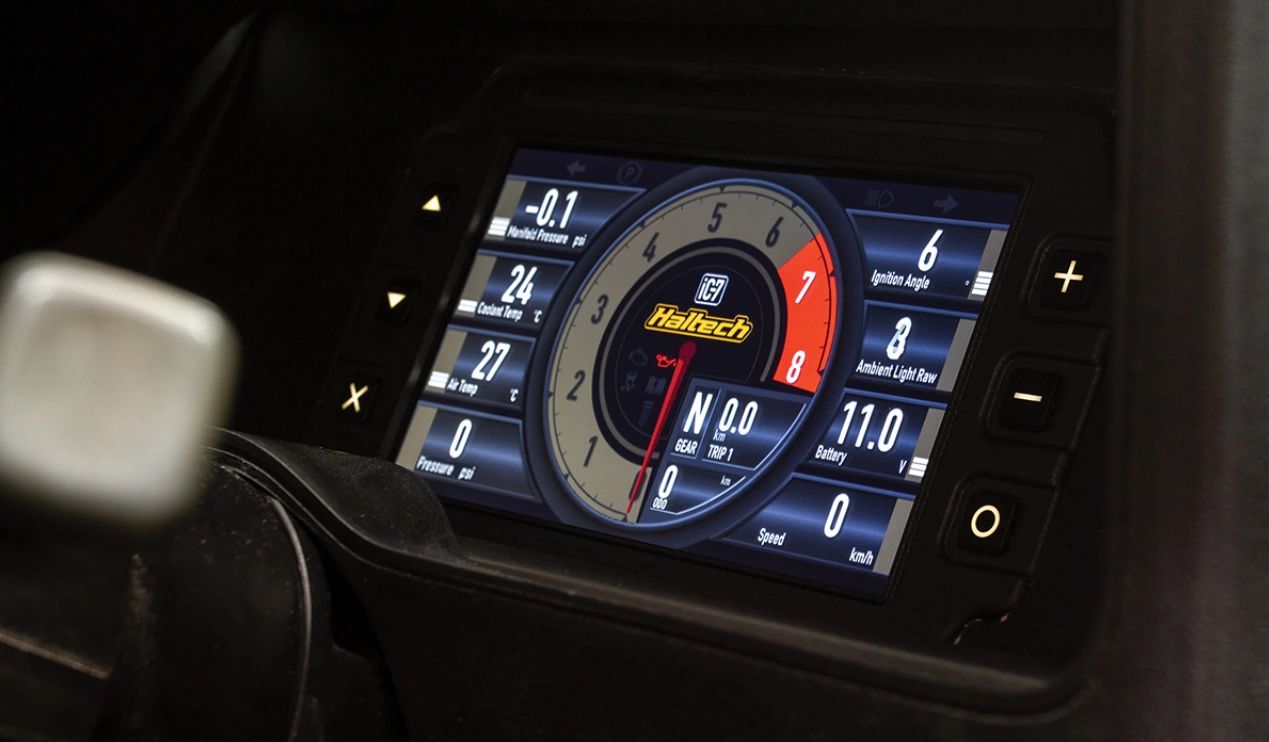

Haltech iC-7 Colour Display Dash

Description

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.
Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.
Featuring custom screen displays,I/O sharing (for Haltech Elite & Nexus ECU’s only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.
Ideal replacement for individual analogue gauge clusters.
Easy to install and configure.
User adjustable brightness control with automatic dimming.
User configurable channels, units and alarms.
User definable Inputs & Outputs
• 9 x Analog Voltage Inputs (AVI)
• 3 x Digital Pulsed Inputs (DPI)
• 1 x Tachometer input
• 4 x Digital Pulsed Outputs (DPO)
• 14 programmable, seven colour shift light LEDs.
• On-board datalogging (512MB)
• Controlled via easily accessible, face-mounted control buttons.
• Configuration via Haltech software and USB cable.
• IP64 (Dust-tight and protected against water splashes).

What’s in the box:
• Haltech iC-7 Display Dash
• Semi-terminated stand-alone harness (HT-060300)
• iC-7 stand-alone sensor pack (HT-010001):
– 1 x coolant temp sensor 1/8 NPT (HT-010304)
– 1 x brass adaptor 1/8″NPTF to 3/8″NPT (HT-120000)
– 2 x 150PSI “TI” fuel/oil/wastegate pressure sensors (HT-010904)
• 34 Pin main connector harness
• DTM-4 to DTM-4 CAN extension cable
• USB to M5 right angle cable
• USB Cable
• Mounting Screws
• USB flash drive with iC-7 Software
• Quick Start Guide
• Haltech stickers and a fabric keyring tag
